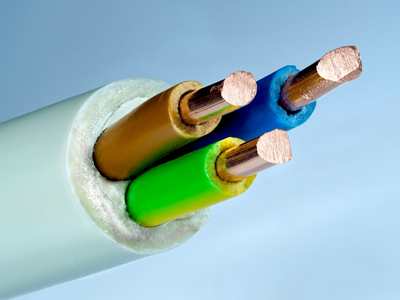

Multicore flexible cables are extremely versatile. They are used for all types of applications. They are an excellent solution for a high volume of cables. These cables are often used in electronic equipment and for the applications where space is limited, such as aircraft and medical equipment. Weldon Cables is renowned Multicore Flexible Cable Manufacturers from Ghaziabad. Coming with a long list of features such as reliability, safety, resistant, fire retardant, halogen-free, lead-free- and non-toxic associated with our multicore flexible cables. In terms of safety concern, multicore flexible cables are the first level of defence.
In flexible wire and cables used conductor are made with flexible wire by stranding or Bunching as per IS: 8130 : 1994
Cores are identifield with a color scheme as per IS:694:90 as under
Insulation:- The PVC that covers the conductor is called insulated wire. It is provided Type A extrusion Type A PVC compound is under as per IS:5831:1984. Eco-Friendly:- Our multicore cables are eco-friendly. They are manufactured by one of the large producers of cables using a high technology production facility.
Our multicore cables come with different core such as 4 core, 3 core, 19 core, 2 core, 16 core, 14 core, 12 core, 10 core, 8 core, 7 core, 6 core and so on. They are the best option for machines, equipment, refrigerators, conditioners, motors, and so on. Coming with best-in-class protections all around, these wires are flexible enough to bend.
The cables are also suitable for single-phase or three-phase AC system for rated voltage up to and including 1100 volts. They are also suitable to use on DC systems for rated voltage up to and including 1500 volts.
Get in touch with us to place bulk orders for multicore flexible cables from us.
For using Power of Machines, Tools , Control Panels other Electricals Equipments etc.
Single Core Insulated Copper Conductor (Unsheathed) cables for Flexible wiring in voltage Grade 650/110 V confirming to IS: 694/1990
Nominal Core Sectional area of conductor mm | Number / Nom. Dia. of Wires | Thickness of Insulation (nom.) mm | Approx. Overall Diameter mm | Current Carrying In Conduit/Trunking Amps. | Resistance Max. per Km @ 20 oC ohms |
---|---|---|---|---|---|
0.5 | 16/02 | 0.6 | 2.30 | 4 | 39.0 |
0.75 | 24/0.2 | 0.6 | 2.50 | 7.41 | 26.0 |
1.0 | 32/0.2 | 0.6 | 2.75 | 12 | 19.5 |
1.5 | 48/0.2(30/0.25) | 0.6 | 2.95 | 15 | 13.3 |
2.5 | 80/0.2(50/0.25) | 0.7 | 3.65 | 20 | 7.98 |
4.0 | 56/0.3 | 0.8 | 4.30 | 27 | 4.95 |
6.0 | 84/03 | 0.8 | 5.3 | 35 | 3.30 |
10 | 80/0.4(140/0.3) | 1.0 | 6.8 | 46 | 1.91 |
16 | 126/0.4(101/0.45) | 1.0 | 8.2 | 62 | 1.12 |
25 | 196/0.4(157/0.45) | 1.2 | 10.0 | 80 | 0.780 |
35 | 276/0.4(220/0.45) | 1.2 | 11.2 | 102 | 0.554 |
50 | 396/0.4(314/0.45) | 1.4 | 13.5 | 136 | 0.386 |
Area Sq. mm | No.& Size of wire No/mm | Conductor | Instulation | ||
---|---|---|---|---|---|
Max. Res@ 20 oC ohm/Km | Current DC/AC Amps | Thickness (Nom) mm | O.D. (Approx) mm | ||
70.0 | 360/.5 | 0.272 | 214 | 1.80 | 16.15 |
95.0 | 475/.5 | 0.206 | 254 | 1.90 | 18.75 |
120.0 | 608/.5 | 0.161 | 300 | 2.10 | 21.25 |
150.0 | 750/.5 | 0.129 | 340 | 2.10 | 22.25 |
185.0 | 925/.5 | 0.106 | 390 | 2.50 | 25.50 |
240.0 | 1221/.5 | 0.0801 | 460 | 2.50 | 28.50 |
Area Sq. | No.& Size of wire | Thickness Of Insulation (Nom) | Nominal thickness of sheath | Overall Dimension (Approx) | Current Rating AC |
Residtance Max. Per Km. @ 20 oC | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Twin Core | Three Core | Four Core | Five Core | Twin Core | Three Core | Four Core | Five Core | |||||
mm | mm | mm | Amps. | ohms | ||||||||
0.5 | 16/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 6.2 | 6.6 | 7.2 | 9.0 | 4 | 39.0 |
0.75 | 24/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 6.5 | 6.9 | 7.6 | 9.6 | 7 | 26.0 |
1.0 | 32/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 1.0 | 6.9 | 7.3 | 8.2 | 10.5 | 12 | 19.5 |
1.5 | 48/0.20(30/.25) | 0.6 | 0.9 | 0.9 | 1.0 | 1.0 | 7.6 | 8.2 | 9.3 | 11.1 | 15 | 13.3 |
2.5 | 80/0.20(50/0.25) | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 | 9.0 | 9.6 | 10.5 | 13.0 | 20 | 7.98 |
4.0 | 56/0.30 | 0.8 | 1.0 | 1.0 | 1.0 | 1.1 | 10.3 | 10.9 | 12.3 | 15.5 | 27 | 4.95 |
Area Sq. | No.& Size of wire | Conductor | Instulation Thickness (NOM) | SHEATH 3 - core | SHEATH 4 - core | |||
---|---|---|---|---|---|---|---|---|
Max. RES@ 20 oC DC/AC Ohm/Km | Current Amps | Thickness (Nom) | O.D. (Approx) | Thickness (Nom) | O.D. (Approx) | |||
mm | mm | |||||||
6.0 | 84/.3 | 3.3 | 31 | 0.8 | 1.20 | 14.05 | 1.50 | 15.80 |
10.0 | 140/.3 or 80/.4 | 1.91 | 42 | 1.0 | 1.30 | 18.00 | 1.50 | 19.00 |
16.0 | 226/.3 or 126/.4 | 1.21 | 57 | 1.0 | 1.30 | 20.60 | 1.50 | 23.00 |
25.0 | 354/.3 or 196/.4 | 0.78 | 72 | 12 | 1.50 | 25.12 | 1.60 | 28.00 |
35.0 | 495/.3 or 276/.4 | 0.554 | 91 | 1.2 | 1.60 | 32.87 | 1.80 | 31.44 |
50.0 | 703/.3 or 396/.4 | 0.386 | 120 | 1.4 | 1.60 | 32.78 | 2.00 | 41.93 |
70.0 | 360/.5 | 0.272 | 165 | 1.4 | 1.80 | 37.78 | 2.0 | 41.93 |
35.0 | 475/.5 | 0.206 | 200 | 1.6 | 1.80 | 43.55 | 2.00 | 48.81 |
120.0 | 608/.5 | 0.161 | 225 | 1.6 | 2.00 | 47.95 | 2.00 | 53.30 |
Norminal Cross Sectional Area of Conductor | Number / Diameter Of Stand | Norminal Thickness of insulation | Bunched and enclosed in conduit or trunking | Clipped direct to a surface or on a cable tray bunched and unenclosed | Conductor Resistence Max. At 20 oC | Max. O.D | ||
---|---|---|---|---|---|---|---|---|
2 Cable Single Phase ac or dc Amp. | 3 or 4 cables 3 phase ac Amp. | 2 Cable Single Phase ac or dc Amp. | 3 or 4 cables 3 phase ac Amp. | |||||
mm (Sq.) | mm | mm | ||||||
1.00 | 1/1.12/3/0.65 | 0.70 | 11 | 9 | 12 | 12 | 18.1 | 3.2 |
1.50 | 1/1.40/3/0.80 | 0.70 | 13 | 11 | 16 | 15 | 12.1 | 3.4 |
2.50 | 1/1.80/3/1.04 | 0.80 | 18 | 16 | 22 | 20 | 7.41 | 4.2 |
4.00 | 1/2.27/7/0.85 | 0.80 | 24 | 20 | 29 | 26 | 4.61 | 4.8 |
6.00 | 1/2.80/7/1.04 | 0.80 | 31 | 25 | 33 | 37 | 3.08 | 5.6 |
10.00 | 1/3.58/7/1.35 | 1.00 | 42 | 35 | 51 | 45 | 1.83 | 7.0 |
16.00 | 7/1.72 | 1.00 | 57 | 48 | 68 | 61 | 1.15 | 8.2 |
25.00 | 7/2.14 | 1.20 | 71 | 60 | 86 | 78 | 0.727 | 10.0 |
35.00 | 7/2.52 | 1.20 | 91 | 77 | 110 | 99 | 0.524 | 1105 |
50.00 | 7/3.02/19/1.83 | 1.40 | 120 | 100 | 145 | 135 | 0.387 | 13.0 |
70.0 | 19/2.14 | 1.40 | 165 | 145 | 200 | 180 | 0.268 | 15.0 |
95.00 | 19/2.52 | 1.60 | 200 | 165 | 235 | 215 | 0.193 | 17.5 |
120.00 | 37/2.04/19/2.85 | 1.60 | 225 | 195 | 270 | 240 | 0.153 | 19.0 |
