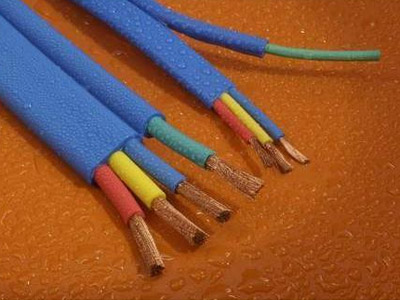

Weldone Cables is engaged in manufacturing and supplying a wide range of PVC submersible cables. These cables are a prominent solution for submersible pumps in deep wells for drinking water supply, irrigation (Direct Burial), industries, mines, fountains, and so on. As one of the most sought-after submersible cable manufacturers, we manufacture submersible flat cables that are designed keeping in mind the industry standard. The PVC Insulated & Sheathed 3 core flat cables manufactured by us are also worth using in electrical connection to the Submersible Pump Motors. The cables are made using bright electrolytic grade copper. We take proper care during the manufacturing process to make sure the highest flexibility and uniform resistance. Our submersible pump cables are highly durable and reasonably priced and available in multiple colors such as red, yellow, and blue. As one of the manufacturer of submersible cable, we know that submersible cables are required to perform in severe and difficult conditions. The area where the cables are installed is physically very restrictive, and the environment is very hostile. Generally, these cables are used for connecting the submersible pump motor with supply lines. The slot available in the tubewell is very narrow. So, the shape of the cables should be suitable for such an application. With keeping all the factors in mind, we manufacture submersible cables. So, our cables feature to achieve the highest possible degree of reliability. Some of the striking features of our submersible cables are that these cables are excellent resistance to water, abrasion, moisture, grease, long flex life, oil. Further, we manufacture and supply bright annealed pure bare copper conductor and special grade PVC submersible cables keeping the norms of IS 694: 1990. If you are searching for one of the top classSubmersible Cables in India, give a call to us. We will provide you with the best quality Submersible Cables online at the best price possible.
Colour of insulation:
- Red, Yellow, Blue
THREE CORE FLAT SHEATHED SUBMERSIBLE CABLES COPPER CONDUCTOR
| CONDUCTOR | INSULATION | SHEATH Overall Dimension |
Resistance @20 oC | current carrying capacity @ 40 occupation | ||||
|---|---|---|---|---|---|---|---|---|
| Area (Nom.) Sq.mm | No./Size of Wire mm | Thickness (Nom.) mm | Core dia. (Nom.)mm | Thickness (Nom.) mm | Width 'W | Thickness 'T' mm | ||
| (max)Ohm/Km | Amps | |||||||
| 1.5 | 22/0.3 | 0.8 | 3.25 | 1.15 | 12.8 | 6.0 | 12.10 | 14 |
| 2.5 | 36/0.3 | 0.9 | 3.90 | 1.15 | 14.6 | 6.4 | 7.41 | 18 |
| 4.0 | 56/0.3 | 1.0 | 4.65 | 1.15 | 17.2 | 7.4 | 4.95 | 26 |
| 6.0 | 84/0.3 | 1.0 | 5.30 | 1.15 | 18.7 | 7.9 | 3.30 | 31 |
| 10.0 | 140/0.3 | 1.0 | 6.60 | 1.40 | 23.7 | 9.9 | 1.91 | 42 |
| 16.0 | 101/0.45 or 226/0.3 | 1.0 | 8.20 | 1.40 | 28.0 | 11.4 | 1.21 | 57 |
| 25.0 | 157/0.45 or 345/0.3 | 1.2 | 10.10 | 2.00 | 35.5 | 14.7 | 0.780 | 72 |
| 35.0 | 220/0.45 or 495/0.3 | 1.2 | 11.50 | 2.00 | 39.5 | 16.2 | 0.554 | 90 |
| 50.0 | 314/0.45 or 703/0.3 | 1.4 | 13.60 | 2.00 | 45.5 | 18.3 | 0.386 | 115 |
Packing
The above cables are supplied incoils of 100mts. Length or wooden drum of 500 meter.
1. Selection Guide for s.s cables
The full load current for ss pump motors, 3 phases, 50 cycles, 440 volts.
HP vs Current
| HP | 5.0 | 7.5 | 10. | 12. | 15. | 17. | 20. | 25. | 30. | 35. | 40. | 45. | 5.0 | 55. | 60. | 65. | 70. | 75. | 85. |
| Amp. | 7.5 | 11 | 14.9 | 18 | 22 | 25 | 28 | 35 | 42 | 50 | 58.1 | 62 | 67 | 73 | 81 | 87 | 93 | 100.8 | 108 |
2. Derating Factors
Multiply the current-carrying capacity of the cable by the factory is given below for various amount of temperatures.
| Ambient Temperature ° C | 30 | 35 | 40 | 45 | 50 |
| Derating Factor | 1.09 | 1.04 | 1.00 | 0.95 | 0.77 |
Application : Mainly in Motor Pump
